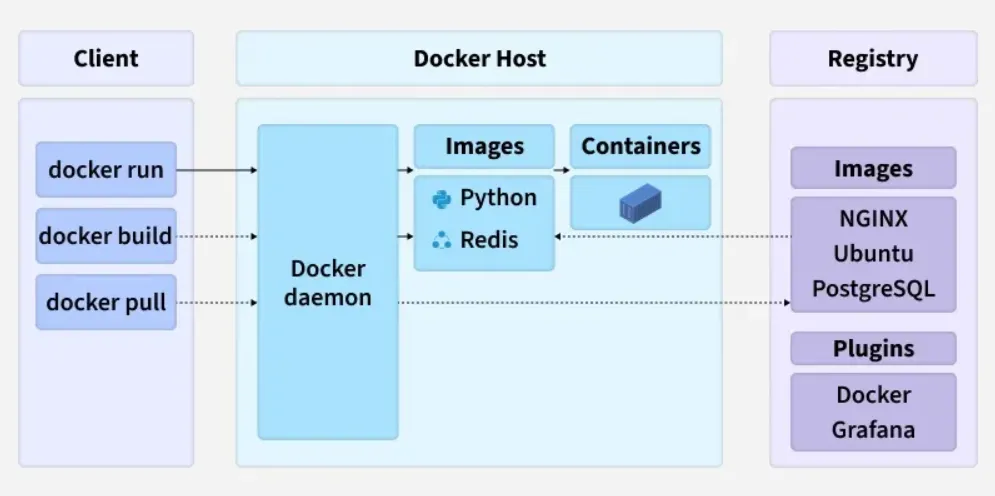

Architecture of Docker#

A Practical Analogy#

Think of containerization like a cooking scenario:

Without Containerization: You share a recipe with a friend, but they fail to recreate it because they lack the right stove, utensils, ingredients, or temperature settings. Each person must set up their entire kitchen separately.

With Containerization: You package the entire kitchen setup stove, utensils, ingredients, and temperature controls, into a portable box. Anyone who receives this box can cook the exact same recipe perfectly, every time. This portable box is your container, and Docker is the system that creates and manages these boxes.

Docker Image#

A Docker image is a blueprint or template that defines how a container should be built and run. It contains:

• Application source code
• Runtime environment
• System libraries and dependencies
• Environment variables and configuration

Think of an image as a class definition in object-oriented programming. It describes the structure and contents, but it’s not executing anything yet.

Docker Container#

A Docker container is a running instance of a Docker image. If you’re familiar with OOP concepts, the relationship is straightforward:

• Image = Class
• Container = Object (instance of that class)

Multiple containers can run from the same image, each executing independently with its own isolated resources.

Docker Engine#

The Docker Engine is the core software component that powers Docker. It is responsible for:

• Building images from Dockerfile specifications
• Running and managing containers
• Handling networking between containers
• Managing storage and volumes
• Coordinating all container lifecycle operations

Dockerfile#

A Dockerfile is a text file containing a series of instructions that tell Docker how to build an image. It specifies:

• The base operating system or runtime
• Dependencies to install
• Files to copy
• Commands to execute
• Environment configuration
• Default startup commands

Example Dockerfile:

FROM node:18
WORKDIR /app
COPY . .
RUN npm install
CMD ["node", "server.js"]

This file instructs Docker to start with Node.js 18, set the working directory, copy application files, install dependencies, and run the server.

Docker Client#

The Docker client is your command-line interface where you execute Docker commands:

docker build
docker run
docker ps
docker stop

The client communicates with the Docker Engine, sending your requests for processing.

Docker Engine (Server)#

The Docker Engine consists of:

• Docker Daemon (dockerd) - A background service that performs all the actual work
• REST API - Enables programmatic communication with Docker
• CLI - The command-line tool users interact with

Docker Objects#

Docker manages several types of objects:

• Images - Blueprints for containers
• Containers - Running instances of images
• Volumes - Persistent storage for data
• Networks - Enable communication between containers

Checking Docker Version#

docker --version

Building an Image#

docker build -t myapp .

The -t flag names your image, and . indicates the Dockerfile is in the current directory.

Listing Local Images#

docker images

Shows all images stored on your system with their sizes and creation dates.

Running a Container#

docker run myapp

To run a container in the background:

docker run -d myapp

Viewing Running Containers#

docker ps

To see all containers (including stopped ones):

docker ps -a

Stopping a Container#

docker stop <container_id>

Removing a Container#

docker rm <container_id>

Removing an Image#

docker rmi myapp

Accessing a Running Container#

docker exec -it <container_id> bash

This command opens an interactive terminal inside the container, which is invaluable for debugging.

Bridge Network#

The bridge network is Docker’s default networking mode for containers on a single host. It works by:

• Creating a virtual network interface (like a virtual switch)
• Assigning each container a private IP address (typically in the 172.17.0.0/16 range)
• Enabling containers to communicate using their IP addresses or names
• Allowing the host to communicate with containers through port mapping

Use Case: Local microservices that need to communicate on the same machine, such as a web server and database running together.

Example:

docker run -d --name web --network bridge nginx
docker run -d --name db --network bridge mysql

In this setup, the web container can communicate with the database container using db:3306.

Host Network#

In the host network mode, containers share the host machine’s network stack directly:

• No virtual network is created
• Containers use the host’s IP address directly
• No port mapping is required
• Better performance but less isolation

Use Case: High-performance applications requiring direct network access, such as monitoring tools or real-time data processing systems.

Example:

docker run -d --name web --network host nginx

Overlay Network#

The overlay network extends Docker networking across multiple machines:

• Requires Docker Swarm or Docker Enterprise
• Enables containers on different hosts to communicate seamlessly
• Uses VXLAN tunneling for traffic forwarding

Use Case: Distributed microservices architectures where services run on different machines but need to communicate as if on the same network.

Portability#

Containers run consistently across:

• Developer laptops and local machines
• Testing and staging servers
• Production cloud environments
• Different operating systems (Linux, Windows, macOS)

Consistency#

The same container behaves identically regardless of where it runs, eliminating environment-related bugs and unpredictable behavior.

Isolation#

Each container operates independently with its own filesystem, processes, and resources, preventing applications from interfering with one another.

Rapid Deployment#

Containers start in seconds, enabling quick deployments and faster response to changes.

Scalability#

You can easily create multiple instances of a container to handle increased demand, distributing load across multiple instances.

Web Development and Microservices#

Major technology companies like Netflix, Spotify, and Airbnb use Docker extensively to:

• Deploy microservices architectures
• Scale individual services independently
• Manage traffic across millions of users
• Ensure consistent environments across development and production

Practical Example: DrukRide Backend#

A ride-sharing application like DrukRide can be structured as:

• User Service - Handle user authentication and profiles
• Driver Service - Manage driver information and status
• GPS Tracking Service - Process real-time location data
• Payment Service - Handle transactions
• Rating Service - Manage user and driver ratings
• Database - Store persistent data

Each service runs in its own container, allowing independent scaling. When GPS tracking demand spikes during peak hours, additional tracking service containers can be automatically deployed without affecting other services.

Machine Learning Deployments#

Data scientists can package:

• Python runtime
• Machine learning frameworks (TensorFlow, PyTorch)
• Required dependencies and libraries
• Trained model files

This containerized solution can be deployed anywhere without dependency conflicts, ensuring reproducibility across different environments.

CI/CD Pipelines#

Containerization integrates seamlessly with Continuous Integration and Continuous Deployment workflows:

1. Code is pushed to repository
2. Docker automatically builds an image
3. Tests run inside the container
4. If tests pass, the container is deployed to production

The same environment throughout this pipeline minimizes bugs and ensures reliability.

Cloud Deployment#

Cloud platforms like Amazon Web Services (AWS), Microsoft Azure, and Google Cloud all use containers to:

• Automatically scale applications based on demand
• Deploy services globally
• Manage high-traffic situations
• Provide managed container services (ECS, AKS, GKE)
